Deep drawn stamping

As professional manufacturers of deep drawing solutions, we pride ourselves on delivering precision, quality, and customer satisfaction. With our state-of-the-art equipment, extensive material options, customization capabilities, and commitment to excellence, we are well-equipped to provide you with deep drawn enclosures that meet your exact specifications. Contact us to discuss your deep drawing requirements and experience the benefits of partnering with us for your manufacturing needs.

Deep drawing is the use of stamping, pulling rings or metal mold technology to shape sheet metal materials into cylindrical or box shaped parts.Deep drawn enclosures are usually carried out on the anti wrinkle pressure plate of the double acting press, and the wrinkle preventing plate can effectively prevent the edge of the bulge from wrinkling when it is pulled into the steel dies.

Deep drawing technology is widely used in the production process, and deep drawn process is applied to many industries. For example, it can be used to produce automobile parts in the automotive industry; it can also be used to manufacture household products, such as stainless steel kitchen sink,cups and so on.

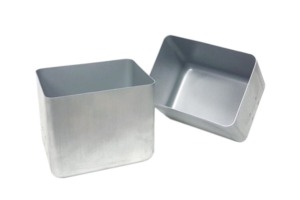

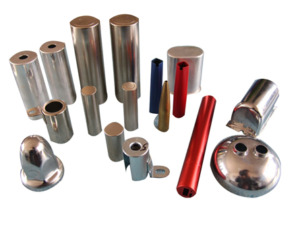

Deep drawn enclosures

As specialists in deep draw technologies,We have been providing deep drawn enclosures services for auto industries,Car Electrical appliances industries and air-conditioner and refrigerating system from North America,Europe,the middle East ,Asia and other countries and regions.

At present,Main equipments include 200-500 tons of hydraulic press, 5-500 tons of stamping machines,large precision CNC machines,CNC lathe and other specialized equipments.

we have our experienced tooling designers and engineering team which ensures that we can provide strong engineering ability on metal stamping parts , deep drawing parts and metal spinning parts in various industries. We also have a strict set of quality control system (ISO9001: 2000) to guarantee the quality of the products.

Engineering and Tool Design

• Collaboration with your design team to ensure a cost effective, robust deep drawn parts
• Concurrent engineering for short lead times and low cost
• Internal tooling design and fabrication to ensure precision tolerances, reliable quality, and short lead times
• Full experience in tools to minimize start-up costs.
• Multi-shift tool room with “lights-out” capability
• Auto-CAD, PRO/ENGINEER,UG and SolidWorks
• Part drawings accepted in virtually all electronic formats

Deep Drawing Process

Below are some simple explanation of our production ability,which help customer to understand our company clearly.We can custom-made any deep drawn enclosures according to your drawing or samples.

At present, our factory has two main types of deep drawing processes, hydraulic deep drawing and Metal spinning.

Hydraulic deep drawn is to install a drawing die on a hydraulic press machine, and then move up and down to achieve the shape change of the metal sheet.

Metal spinning is a process of changing the shape of a product by rotating the metal sheet and applying pressure from a mold tool on a rotating machine.

Hydraulic deep drawing

According to the quantity and size requirements of the guest’s product items, we recommend suitable processing methods.
Hydraulic deep drawn stamping is mainly applicable to following

1. Large quantity
2. Precise size
3. Material and shape are not limited
4. The mold cost is high, but the processing cost is low

Metal spinning

This is another production way of deep drawing.

Metal spinning, also known as spin forming or spinning, is a metalworking process where a rotating metal disc is formed into a desired shape by applying pressure using specialized tools or rollers. This process is commonly used to create symmetrical hollow metal components such as bowls, vases, or lampshades. Metal spinning allows for the production of smooth and seamless parts with minimal material waste, making it a cost-effective method for manufacturing prototypes or low-volume production runs. It is widely used in industries like aerospace, automotive, and lighting for producing custom and complex metal parts.

This process have following feature

1. Small quantity
2. The size requirements are not very high
3. Some shapes are difficult to be made by spinning, which should be discussed with our engineers based on the design drawings
4. The mold cost is low, but the processing cost is high

When developing new products and projects, you should choose a processing method that is more suitable for you based on the above characteristics to save costs and meet the quality requirements of your customers.

Capacity:

• Single Run, progressive, transfer presses
• Low to high volume
• 50 to 5,000,000 pieces

Equipment:

• Hydraulic, mechanical, pneumatic and transfer presses
• Up to 500 tons

Materials:

• Cold rolled steel, stainless steel, aluminum, copper, brass, titanium, nickel, Aluminum Alloy,Brass Alloy,Steel Alloy,Carbon Steel,Titanium,Tungsten,tantalum, and many others

Sizes:

• 1/16″ to 18″ (1.6mm to 457 mm) diameter
• Lengths up to 18″ (457 mm)
• Material thicknesses .002″ to .250″ (0.05 mm to 6.35 mm)

Precision / Tolerances:

• ±.0005″ (0.013 mm)
• Drawn corner radii as small as .002″ (0.05 mm)

Finish Processes:

• Degreasing, deburring, heat treating, and passivating
• Andodizing, polishing, painting, powder coating, sand blasting,Barrel polish, and plating
• Piercing, extruding, bulging, coining, tapping and machining
• Resistance spot welding, TIG welding, laser welding and brazing to MIL specifications
• Assembly of components and brackets to deep drawn enclosures
• PEM, stud and standoff insertions
